Other uses for the Digitech-i Microscope include:
  • Classroom teaching aid
  • Scientific and laboratory research tool including dissection and examination of specimen
  • Medical analysis such as dermatological examinations, etc
  • Reading Aid
  • Industrial Inspection
  • Computer Parts inspection
  • Textile Inspection
  • Jewelry Inspection
  • Collections/Coin Inspection
  • Printing Inspection



DTI-DM002 Left 03.jpg

Product Usage

 DTI-DM002 Left 01.jpg

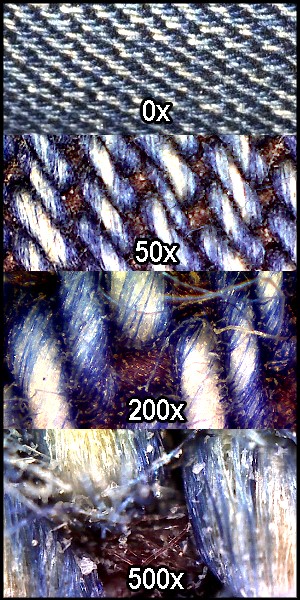

Magnification Levels (50x, 200x & 500x)

DTI-DM002 Left 04.jpg

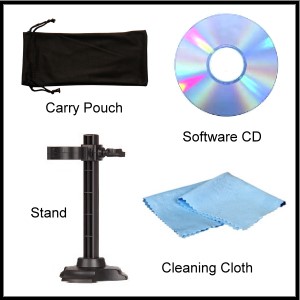

Accessories Included

Home > Products > Microscopes

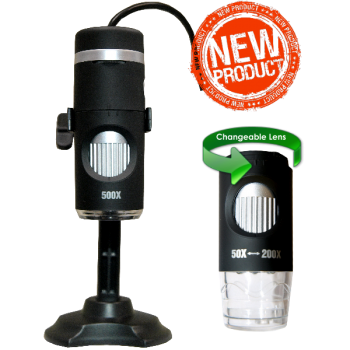

2.0MP USB Digital Microscope
with Dual Lens 50x ~ 500x
Magnification

The Digitech-i Microscope is a fully functional magnification device which can easily be operated by plugging directly into your computer enabling you to magnify objects from 50x up to 500x. Enhanced with adjustable light control wheel with 6 white LED lights and a 2.0MP digital camera, the USB Microscope can capture high quality images and videos (AVI).

The full package includes a user friendly image processing software, 2 changeable Lens with lens cover and a detachable stand. Additionally, this high end digital microscope requires no batteries, receiving its power directly from the computer's USB power. The USB Microscope's compact and innovative design, as well as its easy accessibility option make it a perfect candidate for classroom projects for scientific teaching and research.


Specifications:



Image Sensor 2.0 Megapixels
Video Capture Resolution 640X480 (VGA)
Still Image Capture Resolution 1600X1200,1280X1024,640X480,320X240
Color 24bit RGB
Lens Dual Axis 50x ~ 200x  and 500x Microscope Lens
Focus Range Manual Focus From 10mm onwards
Flicker Frequency 50Hz/60Hz
Frame Rate Max 30f/s under 600 Lus Brightness
Magnification Ratio 50x, 200x and 500x
Shutter Speed 1 sec. To 1/1000sec.
Video Format AVI format
White Balance Auto
Exposure Auto
Light Source 6 LED White Lights (Adjustable Light Intensity)
PC Interface Mini USB 2.0
Operation System Windows 2000/XP/Vista/Win 7/Win 8
OSD Language English
Power Supply 5V DC from USB Port
Size 110mm(L) X 33mm(R)





Accessories:

Microscope Stand
CD ROM (Driver)
User Guide
Cleaning Cloth
Carry Pouch

Package Details:

Unit: 24 x 14 x 5.5cm (L x W x H)
Weight: Including Metal Stand 500g
20pcs/Carton Gross weight: 14Kgs
Carton Dimension: 28 x 44 x 28cm (L x W x H)
