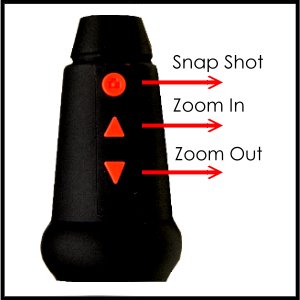

Functions

DTI-UEM001 Left 03.jpg

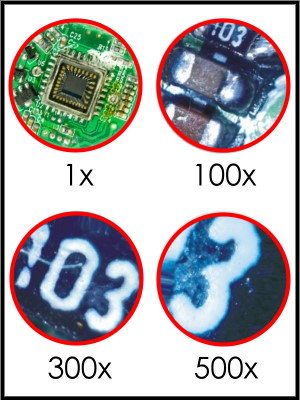

Magnification Levels

DTI-UEM001 Left 04.jpg

Award

  • strict warning: Non-static method view::load() should not be called statically in /var/www/vhosts/digitech-i.com/httpdocs/sites/all/modules/views/views.module on line 879.
  • strict warning: Declaration of views_handler_argument::init() should be compatible with views_handler::init(&$view, $options) in /var/www/vhosts/digitech-i.com/httpdocs/sites/all/modules/views/handlers/views_handler_argument.inc on line 33.
  • strict warning: Declaration of views_handler_filter::options_validate() should be compatible with views_handler::options_validate($form, &$form_state) in /var/www/vhosts/digitech-i.com/httpdocs/sites/all/modules/views/handlers/views_handler_filter.inc on line 17.
  • strict warning: Declaration of views_handler_filter::options_submit() should be compatible with views_handler::options_submit($form, &$form_state) in /var/www/vhosts/digitech-i.com/httpdocs/sites/all/modules/views/handlers/views_handler_filter.inc on line 17.
  • strict warning: Declaration of views_plugin_style_default::options() should be compatible with views_object::options() in Unknown on line 0.
  • strict warning: Declaration of views_plugin_row::options_validate() should be compatible with views_plugin::options_validate(&$form, &$form_state) in Unknown on line 0.
  • strict warning: Declaration of views_plugin_row::options_submit() should be compatible with views_plugin::options_submit(&$form, &$form_state) in Unknown on line 0.

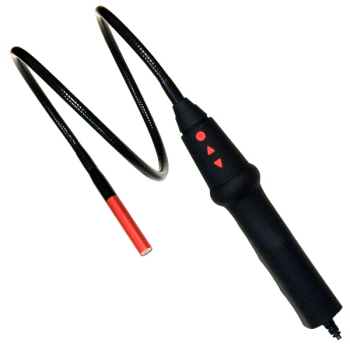

500x USB Magnification
Inspection Camera

The Digitech-i USB Magnification Inspection Camera is designed with dual function - It works as an Endoscope to explore the places that you cannot reach to and as a Microscope for magnifying small objects . It comes with multi magnification levels ranging from 1x ~ 500x, adjustable LED lights and a Waterproof Camera making sure that you will see every detail you want to see.

Features :

 - 500x magnification, enough for checking even a small soldering / transistor in a PCB.

 - Water-resistant camera complete with four adjustable LEDs, competent for a dark and closed environment.

 - Semi-flexible insertion tube which is bendable to see around a corner or to look directly at a feature in a bore.

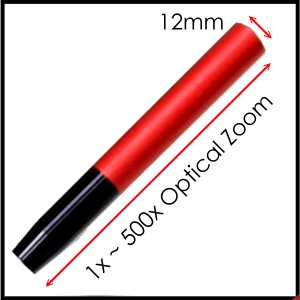

 - Available with 82cm cable with 12mm Diameter, enabling to reach places that you cannot reach but still need to.

 - Capture high quality colour images and video by the touch of a button on the handle.

 - Plug and play, easy to install. No driver needed.


Other uses for the Magnification Endoscope include:


 - Golf Course (to inspect the grass health)

 - Workshops; Laboratories; Hobbyists; tinkerers

 - Industrial inspection; Science education; Medical

 - Printing; Textile; Jewellers

 - Printed circuit board (PCB) inspection; Parts assembly

 - Forensics; Crime scene investigation



Specifications:

Packing:

Probe Length: 82cm Length Gift Box/ 1pcs (21 X 36 X 7 cm)
Camera Head Outer Diameter: 13mm N.W.: 1KG G.W.: 12KG
USB cable: 150 cm USB 2.0 interface Carton Size: (24 X 38 X 66 cm)
Water resistant camera head and probe 10Pcs/Carton, G.W. 12KG
4 White LED Lights (Adjustable)
Resolution: 640*480
Lens: viewable of angle: 54°
Focal distance: 6cm --infinite
Frame rate up to 30fps @ VGA resolution
Snapshot & LED lighting adjustable
